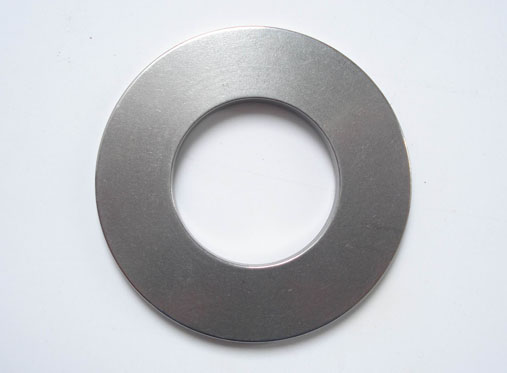

High Tempreture Disc Springs(≦400℃)

Material:631(PH17-7),632,PH15,30W4Cr2VA

High Tempreture  Disc Springs

Item no.
D/mm
d/mm
t/mm
H0/mm
Q/kg/1000pcs
f=ho
f≈0.75h0
σ / MPa
σ om/ MPa
f/mm
F/N
SY6001
6
3.2
0.3
0.4
0.046
-1098
0.08
84
932
SY6002
8
3.2
0.3
0.55
0.096
-1351
0.19
107
1061
SY6003
8
3.2
0.4
0.55
0.128
-1081
0.11
136
1063
SY6004
8
4.2
0.3
0.5
0.083
-1221
0.15
92
987
SY6005
8
4.2
0.4
0.55
0.11
-1221
0.11
154
1017
SY6006
10
3.2
0.3
0.65
0.161
-1164
0.26
99
971
SY6007
10
3.2
0.4
0.7
0.214
-1330
0.23
185
1150
SY6008
10
3.2
0.5
0.7
0.268
-1108
0.15
223
1235
SY6009
10
4.2
0.4
0.65
0.196
-1170
0.19
158
929
SY6010
10
4.2
0.5
0.7
0.245
-1170
0.15
235
1097
SY6011
10
5.2
0.4
0.65
0.174
-1295
0.19
174
1021
SY6012
10
5.2
0.5
0.7
0.217
-1295
0.15
261
1065
SY6013
12
4.2
0.4
0.8
0.301
-1245
0.3
181
1002
SY6014
12
4.2
0.5
0.8
0.376
-1168
0.23
246
1068
SY6015
12
4.2
0.6
0.85
0.452
-1168
0.19
343
1215
SY6016
12
5.2
0.5
0.8
0.348
-1232
0.23
260
978
SY6017
12
5.2
0.6
0.85
0.418
-1232
0.19
362
1120
SY6018
12
6.2
0.5
0.8
0.315
1343
0.23
300
1044
SY6019
12
6.2
0.6
0.85
0.378
-1343
0.19
395
1096
SY6020
12.5
5.2
0.5
0.85
0.385
-1306
0.26
274
981
SY6021
12.5
6.2
0.5
0.8
0.351
-1207
0.23
255
923
SY6022
12.5
6.2
0.7
0.95
0.492
-1409
0.19
560
1229
SY6023
14
7.2
0.5
0.9
0.431
-1312
0.3
283
1117
SY6024
14
7.2
0.8
1.05
0.688
-1312
0.19
678
1154
SY6025
15
5.2
0.4
0.95
0.473
-1094
0.41
178
1017
SY6026
15
5.2
0.5
1
0.592
-1244
0.38
284
997
SY6027
15
5.2
0.6
1.05
0.71
-1343
0.34
415
1098
SY6028
15
5.2
0.7
1.05
0.828
-1219
0.26
483
1206
SY6029
15
6.2
0.5
1
0.558
-1293
0.38
296
1105
SY6030
15
6.2
0.6
1
0.669
-1242
0.3
375
963
SY6031
15
6.2
0.7
1.05
0.781
-1268
0.26
503
1119
SY6032
15
8.2
0.7
1
0.66
-1252
0.23
506
979
SY6033
15
8.2
0.8
1.05
0.754
-1193
0.19
616
1012
SY6034
16
8.2
0.4
0.95
0.452
-1102
0.41
160
1178
SY6035
16
8.2
0.6
1.05
0.678
-1353
0.34
418
1125
SY6036
16
8.2
0.7
1.05
0.79
-1227
0.26
487
946
SY6037
16
8.2
0.8
1.1
0.903
-1202
0.23
630
1016
SY6038
16
8.2
0.9
1.2
1.015
-1353
0.23
894
1176
SY6039
18
6.2
0.4
1
0.685
-828
0.45
141
803
SY6040
18
6.2
0.5
1.1
0.856
-1035
0.45
249
898
SY6041
18
6.2
0.6
1.2
1.026
-1242
0.45
406
994
SY6042
18
6.2
0.7
1.25
1.197
-1329
0.41
558
1058
SY6043
18
6.2
0.8
1.25
1.368
-1242
0.34
659
1181
SY6044
18
8.2
0.5
1.1
0.769
-1117
0.45
269
1071
SY6045
18
8.2
0.7
1.2
1.076
-1303
0.38
547
1018
SY6046
18
8.2
0.8
1.25
1.23
-1340
0.34
711
1060
SY6047
18
8.2
1
1.35
1.536
-1303
0.26
1034
1202
SY6048
18
9.2
0.7
1.15
1.003
-1245
0.34
513
984
SY6049
18
9.2
1
1.3
1.432
-1185
0.23
964
1056
SY6050
20
8.2
0.6
1.3
1.195
-1219
0.53
420
1111
SY6051
20
8.2
0.7
1.35
1.394
-1321
0.49
579
1092
SY6052
20
8.2
0.8
1.35
1.593
-1277
0.41
686
979
SY6053
20
8.2
0.9
1.4
1.791
-1306
0.38
881
1113
SY6054
20
8.2
1
1.45
1.99
-1306
0.34
1065
1202
SY6055
20
10.2
0.5
1.1
0.887
-959
0.45
252
960
SY6056
20
10.2
0.8
1.3
1.417
-1279
0.38
689
1001
SY6057
20
10.2
0.9
1.35
1.594
-1295
0.34
861
1001
SY6058
20
10.2
1
1.4
1.771
-1279
0.3
1029
1064
SY6059
20
10.2
1.1
1.45
1.947
-1231
0.26
1177
1084
SY6060
20
10.2
1.25
1.55
2.212
-1199
0.23
1516
1112
SY6061
20
10.2
1.5
1.75
2.652
-1199
0.19
2155
1164
SY6062
22.5
11.2
0.6
1.4
1.37
-1195
0.6
432
1245
SY6063
22.5
11.2
0.8
1.45
1.826
-1294
0.49
720
1095
SY6064
22.5
11.2
1.25
1.65
2.85
-1245
0.3
1552
1111
SY6065
23
8.2
0.7
1.5
1.937
-1190
0.6
552
1022
SY6066
23
8.2
0.8
1.55
2.213
-1275
0.56
727
1005
SY6067
23
8.2
0.9
1.6
2.49
-1339
0.53
938
1047
SY6068
23
8.2
1
1.6
2.766
-1275
0.45
1058
1152
SY6069
23
10.2
0.9
1.55
2.292
-1319
0.49
980
1024
SY6070
23
10.2
1
1.6
2.547
-1353
0.45
1122
1057
SY6071
23
10.2
1.25
1.7
3.181
-1268
0.34
1599
1182
SY6072
23
12.2
1
1.5
2.277
-1240
0.38
1076
935
SY6073
23
12.2
1.25
1.65
2.845
-1240
0.3
1546
1066
SY6074
23
12.2
1.5
1.85
3.412
-1302
0.26
2299
1186
SY6075
25
10.2
1
1.7
3.124
-1299
0.53
1106
988
SY6076
25
12.2
0.7
1.6
2
-1256
0.68
610
1277
SY6077
25
12.2
0.9
1.6
2.57
-1256
0.53
881
1038
SY6078
25
12.2
1
1.65
2.855
-1296
0.49
1090
1009
SY6079
25
12.2
1.25
1.75
3.567
-1246
0.38
1587
1066
SY6080
25
12.2
1.5
1.95
4.278
-1346
0.34
2429
1232
SY6081
28
10.2
0.8
1.75
3.266
-1094
0.71
670
963
SY6082
28
10.2
1
1.9
4.081
-1296
0.68
1152
1013
SY6083
28
10.2
1.25
1.95
5.1
-1260
0.53
1635
1156
SY6084
28
10.2
1.5
2.1
6.118
-1296
0.45
2347
1329
SY6085
28
12.2
1
1.85
3.812
-1285
0.64
1126
1050
SY6086
28
12.2
1.25
1.95
4.763
-1322
0.53
1716
1079
SY6087
28
12.2
1.5
2.05
5.714
-1247
0.41
2237
1169
SY6088
28
14.2
0.8
1.8
2.797
-1300
0.75
813
1323
SY6089
28
14.2
1
1.8
3.495
-1300
0.6
1123
1102
SY6090
28
14.2
1.25
1.9
4.367
-1320
0.49
1696
1009
SY6091
28
14.2
1.5
2.05
5.237
-1341
0.41
2406
1147
SY6092
31.5
12.2
1
2.1
5.059
-1268
0.83
1187
1102
SY6093
31.5
12.2
1.25
2.15
6.322
-1297
0.68
1729
1006
SY6094
31.5
12.2
1.5
2.25
7.584
-1297
0.56
2372
1194
SY6095
31.5
16.3
0.8
1.85
3.486
-1092
0.79
697
1146
SY6096
31.5
16.3
1.25
2.05
5.443
-1300
0.6
1698
1031
SY6097
31.5
16.3
1.5
2.15
6.529
-1268
0.49
2317
1021
SY6098
31.5
16.3
1.75
2.3
7.614
-1252
0.41
3040
1096
SY6099
31.5
16.3
2
2.5
8.697
-1300
0.38
4178
, 1188
SY6100
34
12.3
1
2.25
6.031
-1219
0.94
1192
1097
SY6101
34
12.3
1.25
2.35
7.536
-1341
0.83
1851
1036
SY6102
34
12.3
1.5
2.4
9.04
-1316
0.68
2472
1178
SY6103
34
14.3
1.25
2.3
7.136
-1329
0.79
1814
1067
SY6104
34
14.3
1.5
2.35
8.56
-1291
0.64
2404
1072
SY6105
34
16.3
1.5
2.3
8.008
-1282
0.6
2366
1004
SY6106
34
16.3
2
2.6
10.669
-1282
0.45
4084
1186
SY6107
35.5
18.3
0.9
2.05
5.002
-1057
0.86
887
1093
SY6108
35.5
18.3
1.25
2.25
6.944
-1277
0.75
1723
1089
SY6109
35.5
18.3
2
2.65
11.097
-1328
0.49
4261
1157
SY6110
40
14.3
1.25
2.65
10.48
-1230
1.05
1806
1048
SY6111
40
14.3
1.5
2.75
12.572
-1318
0.94
2587
993
SY6112
40
14.3
2
2.9
16.754
-1265
0.68
4128
1270
SY6113
40
16.3
1.5
2.7
12.019
-1304
0.9
2535
1016
SY6114
40
16.3
2
2.9
16.017
-1304
0.68
4254
1204
SY6115
40
18.3
2
2.85
15.19
-1284
0.64
4161
1122
SY6116
40
20.4
1
2.3
7.115
-1039
0.98
1033
1079
SY6117
40
20.4
1.5
2.6
10.665
-1319
0.83
2537
1086
SY6118
40
20.4
2
2.8
14.211
-1279
0.6
4117
1064
SY6119
40
20.4
2.25
2.95
15.981
-1259
0.53
5126
1114
SY6120
40
20.4
2.5
3.15
17.751
-1299
0.49
6473
1189
SY6121
45
22.4
1.25
2.85
11.448
-1245
1.2
1989
1272
SY6122
45
22.4
1.75
2.95
16.018
-1307
0.9
3374
1043
SY6123
45
22.4
2.5
3.35
22.863
-1322
0.64
6633
1165
SY6124
50
18.4
1.25
2.85
16.257
-905
1.2
1395
828
SY6125
50
18.4
1.5
3.3
19.504
-1221
1.35
2644
1085
SY6126
50
18.4
2
3.45
25.994
-1312
1.09
4467
1050
SY6127
50
18.4
2.5
3.65
32.479
-1301
0.86
6578
1273
SY6128
50
18.4
3
3.95
38.958
-1289
0.71
9225
1386
SY6129
50
20.4
2
3.4
25.059
-1299
1.05
4392
988
SY6130
50
20.4
2.5
3.6
31.31
-1276
0.83
6485
1185
SY6131
50
22.4
2
3.3
24.028
-1246
0.98
4188
938
SY6132
50
22.4
2.5
3.6
30.02
-1317
0.83
6699
1154
SY6133
50
25.4
1.25
2.85
13.948
-1020
1.2
1573
1051
SY6134
50
25.4
1.5
3.1
16.733
-1224
1.2
2548
1162
SY6135
50
25.4
2
3.3
22.299
-1326
0.98
4460
1049
SY6136
50
25.4
2.5
3.5
27.859
-1275
0.75
6418
1064
SY6137
50
25.4
3
3.85
33.412
-1301
0.64
9346
1176
SY6138
56
28.5
1.5
3.45
20.951
-1191
1.46
2659
1236
SY6139
56
28.5
2
3.6
27.921
-1303
1.2
4503
1105
SY6140
56
28.5
3
4.05
41.84
-1283
0.79
9267
1107
SY6141
60
20.5
2
4.1
38.242
-1303
1.58
4806
1061
SY6142
60
20.5
2.5
4.2
47.786
-1319
1.28
6753
1153
SY6143
60
20.5
3
4.4
57.324
-1303
1.05
9409
1332
SY6144
60
25.5
2.5
4.1
44.32
-1305
1.2
6816
1016
SY6145
60
25.5
3
4.3
53.163
-1272
0.98
9301
1158
SY6146
60
30.5
2.5
4
40.115
-1329
1.13
6916
1026
SY6147
60
30.5
3
4.2
48.117
-1276
0.9
9245
1064
SY6148
60
30.5
3.5
4.55
56.11
-1303
0.79
29721
1164
SY6149
63
31
1.8
4.1
32.573
-1306
1.73
4175
1328
SY6150
63
31
2.5
4.15
45.214
-1301
1.24
6833
1021
SY6151
63
31
3
4.4
54.234
-1325
1.05
9684
1074
SY6152
63
31
3.5
4.7
63.247
-1325
0.9
30834
1173
SY6153
70
25.5
2
4.5
51.15
-1152
1.88
4505
1039
SY6154
70
30.5
2.5
4.7
59.715
-1330
1.65
7318
1101
SY6155
70
30.5
3
4.8
71.633
-1306
1.35
9530
1033
SY6156
70
35.5
3
4.7
65.661
-1326
1.28
9876
1006
SY6157
70
35.5
4
5.2
87.48
-1248
0.9
37060
1117
SY6158
70
40.5
4
5.1
78.305
-1265
0.83
37294
1065
SY6159
70
40.5
5
5.9
97.792
-1293
0.68
56618
1159
SY6160
71
36
2
4.6
45.078
-1314
1.95
5219
1362
SY6161
71
36
2.5
4.5
56.326
-1264
1.5
6823
1070
SY6162
71
36
4
5.3
90.018
-1314
0.98
39797
1157
SY6163
80
31
2.5
5.3
81.874
-1251
2.1
7344
1097
SY6164
80
31
3
5.4
98.222
-1287
1.8
9709
984
SY6165
80
31
4
5.8
130.891
-1287
1.35
41446
1227
SY6166
80
36
3
5.3
92.159
-1294
1.73
10108
1031
SY6167
80
36
4
5.7
122.804
-1275
1.28
40708
1126
SY6168
80
41
2.25
5
63.925
-1240
2.06
6586
1254
SY6169
80
41
3
5.2
85.19
-1323
1.65
10344
1092
SY6170
80
41
4
5.6
113.508
-1282
1.2
40209
1064
SY6171
80
41
5
6.3
141.787
-1303
0.98
59463
1189
SY6172
90
46
2.5
5.7
90.032
-1264
2.4
7796
1305
SY6173
90
46
3.5
5.8
125.968
-1272
1.73
35157
1012
SY6174
90
46
5
6.6
179.789
-1264
1.2
59309
1111
SY6175
100
41
4
6.8
200.275
-1301
2.1
47810
987
SY6176
100
41
5
7.2
250
-1277
1.65
63942
1183
SY6177
100
51
2.7
6.3
120
-1243
2.7
28462
1306
SY6178
100
51
3.5
6.3
156
-1253
2.1
37130
1064
SY6179
100
51
4
6.5
178
-1279
1.88
45356
1001
SY6180
100
51
5
7
223
-1279
1.5
62636
1064
SY6181
100
51
6
7.7
267
-1304
1.28
86724
1176
SY6182
112
57
3
6.7
168
-1130
2.78
9612
1144
SY6183
112
57
4
7.2
224
-1303
2.4
50430
1105
SY6184
112
57
6
8.1
335
-1283
1.58
88391
1107
SY6185
125
41
4
8.2
336
-1195
3.15
52412
959
SY6186
125
51
4
8.4
314
-1306
3.3
58723
1157
SY6187
125
51
5
8.5
392
-1299
2.63
74789
988
SY6188
125
51
6
9.4
470
-1514
2.55
116763
1283
SY6189
125
61
5
8.3
358
-1316
2.48
74248
1030
SY6190
125
61
6
8.7
430
-1292
2.03
93947
1066
SY6191
125
64
3.5
8
243
1292
3.38
48733
1337
SY6192
125
64
5
8.2
347
-1312
2.4
73062
1036
SY6193
125
71
6
8.4
382
-1276
1.8
90033
995
SY6194
140
72
3.8
8.7
330
-1221
3.68
54379
1267
SY6195
140
72
5
9
434
-1312
3
79315
1117
SY6196
150
61
5
10.1
566
-1313
3.83
88857
1125
SY6197
150
61
6
10.25
679
-1313
3.19
109180
994
SY6198
150
71
6
10
631
-1309
3
106410
1015
SY6199
160
82
4.3
9.9
489
-1206
4.2
69059
1256
SY6200
160
82
6
10.3
682
-1292
3.23
10860
1059
SY6201
180
92
4.8
10.8
693
-1138
4.5
79196
1161
SY6202
180
92
6
11.1
866
-1209
3.83
108218
1050
SY6203
200
102
5.5
12.5
981
-1231
5.25
113657
1265
SY6204
200
82
8(7.6)
13.6
1524
-1300
4.2
198019
1044
SY6205
200
92
10(9.5)
14.3
1804
-1314
3.23
274653
1027
SY6206
200
92
12(11.4)
15.6
2164
-1327
2.7
372601
1154
SY6207
200
102
5.5
12.38
981
-1210
5.16
110558
1234
SY6208
200
102
8
13.1
1426
-1304
3.83
185936
1027
SY6209
200
102
12(11.3)
15.4
2012
-1408
2.55
371981
1079
SY6210
200
102
14(13.1)
16.9
2332
-1417
2.18
490207
1134
SY6211
200
112
14(12.9)
15.6
2129
-857
1.2
280659
670
SY6212
225
112
8(7.5)
14.5
1721
-1371
4.88
207984
1193
SY6213
250
127
7(6.7)
14.8
1874
-1151
5.85
155211
1132
SY6214
250
127
10
16.4
2794
-1228
4.8
290834
1028
SY6215
250
127
12(11.25)
17.3
3143
-1398
3.98
400606
1023
SY6216
250
127
14(13.1)
18.55
3658
-1411
3.41
517483
1026
SY6217
250
127
16
20
4465
-1306
3
603682
1206
You can contact us, click herecontact_us
Home| Company| Products| Contact us| sitemap
Disc Springs to DIN 2093 | Heavy Duty Bolting Washers to DIN 6796 | Stainless Steel Disc Springs | Bearing Preload Disc Springs | Serrated Safety Washers (anti-vibration) | Waved Spring | Clutch Spring | belleville spring washer
Address:No.177,Xisali,Jinshan,Huli,Xiamen,China
Tel:86-592-5254186 86-592-5289710  Fax:86-592-5513310
Copyright © 2009 Xiamen Shuangyuan Springs Co.,Ltd
